Informação detalhada

Modelo:	BXT-2000W	Torque máximo:	2000N.m
Faixa de medição:	2% a 500% N.M.	Erro Relativo da Indicação do Torque de Teste:	Nível 1
Erro Relativo de Indicação da Repetibilidade do Torque de Teste:	≤±1%	Definição do torque:	1/500.000 do torque máximo, sem classificação
Destacar:	5000Nm Screwdriver Torque Testing Machine , Computer Control Screwdriver Torque Testing Machine , Torsion Test Equipment

Descrição de produto

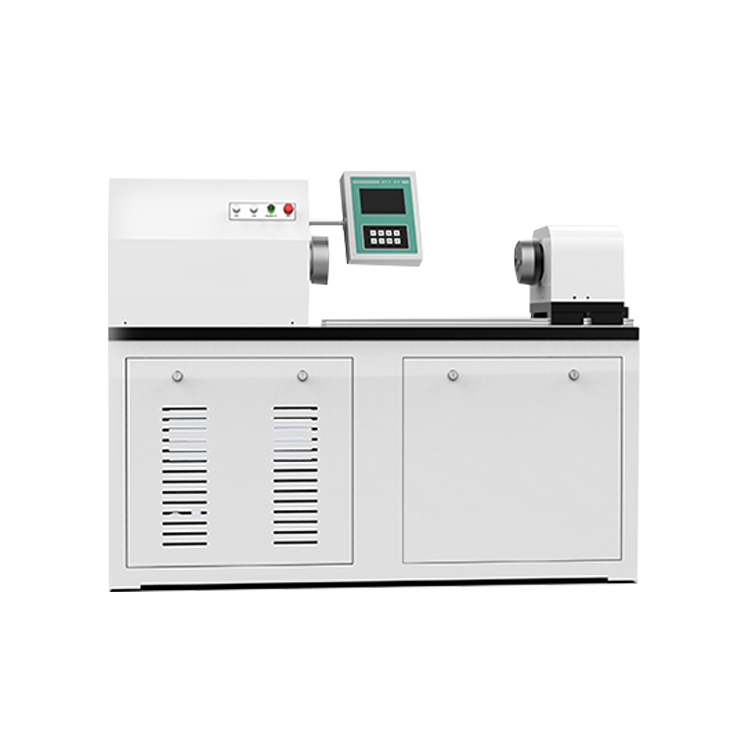

Metal wire torsion testing machine

The torsion testing machine is mainly used for the torsion testing of hardware components, parts, raw materials, semi-finished parts, and finished parts. The tested samples are installed between adjustable fixtures to adapt to the torsion mechanical performance tests of different tested samples. The testing machine is controlled by a computer and can collect data such as torque, peak value, angle, and curves; the display shows the torque-time, twist-angle-time, and torque-twist-angle test curves of the tested parts; it can realize the storage, extraction, and printing of test data, as well as the storage and printing of test reports.

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 0

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 1

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 2

Digital display type torsion testing machine
Model	BXT-10W	BXT-20W	BXT-500W	BXT-1000W	BXT-2000W	BXT-5000W
Maximum torque	10N.M	20N.M	500N.M	1000N.M	2000N.M	5000N.M
Measurement range	2%-500%N.M
Relative Error of Test Torque Indication	Level 1
Relative Indication Error of Test Torque Repeatability	≤±1%
Torque resolution	1/500,000 of the maximum torque, without grading
Moving Distance Between Chucks	400mm
Coaxiality Accuracy Between Two Fixtures	Within a range of 1000mm≤∅0.2mm
Torsion angle measurement range	0～10000°
Relative error of the torsion angle measurement	±1%
Torsion angle resolution	±0.001°
Torsion angle accuracy	0.009°
Torsional speed	0.01 - 720°/min infinitely variable speed control
Relative error of torque reversal speed	Within ±1.0% of the set value
Power supply	220V 50Hz AC
Torsion Direction	Forward rotation Reverse rotation

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 3

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 4

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 5

Packing & Delivery

10-5000Nm Computer Control Screwdriver Torque Testing Machine Torsion Test Equipment 6

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese

etiqueta:

Lugar de origem:	China
Marca:	BAXIT
Número do modelo:	BXT-10W/BXT-20W/BXT-500W/BXT-1000W/BXT-2000W/BXT-5000W

Quantidade de ordem mínima:	1
Preço:	US $2445.0 - 10600.0 / Unit
Detalhes da embalagem:	Caixa de cartão/caixa de madeira
Tempo de entrega:	5-8 Dia de trabalho
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte:	10000pcs
